适用范围：
重型石材雕刻机：花岗岩、大理石、青石、砂岩、玻璃等石材雕刻。

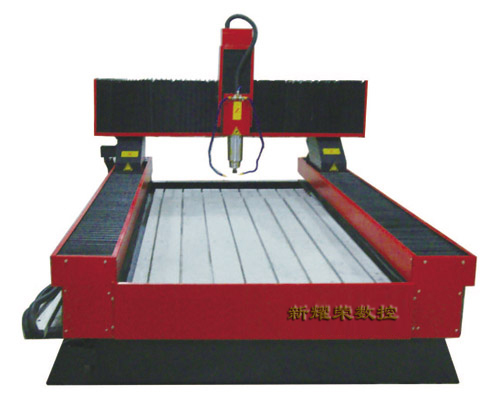

This machine is very suit for engraving and cutting stone, marble, granite, tile, manmade stone, sandstone,limestone,and so on.
配置参数：
| 行程：XYZ的行程 |
X-Y-Z axis working area |
1200mm×1400mm×200mm |
| 平台尺寸 |
Table size |
1400mm×2300mm |
| 精度 |
Repositioning Precision |
±0.05mm |
| 重复定位精度 |
Processing precision |
0.05mm |
| X、Y、Z齿条传动 |
X、Y、Z Transimision |
XY: Rack and pinion Z:ball screw |
| 速度最大空行速度 |
Max travel speed |
20000m/min |
| 最大工作速度 |
Max processing speed |
10m/min |
| 主轴功率 |
Spindle power |
3.0kw water-cooling |
| 主轴转速 |
Spindle speed |
18000RPm |
| 运行模式 |
Drive motor |
步进stepper |
| 工作电压 |
Working Voltage |
AC380V/50HZ |
| 运行指令 |
Command language |
G代码G code |
机器特点：
◆重型石材雕刻机恒功率主轴电机，切削力度大，效率高。
◆软件兼容性好，可兼容Typ3/Artcam/Castmate文泰等多种CAD/CAM设计软件。
◆双向刀具冷却系统，有效提高刀具适用寿命。
◆Constant power water-cooling spindle for Heavy load marble cnc router, with bigger power and higher efficient!
◆Soft compatibility: Our machine is compatible with Type3/Artcam/Castmate/Wentai and other kinds of CAD/CAM software.
◆Two-way tool cooling system., to improve the tool life effectively.
样品展示：
