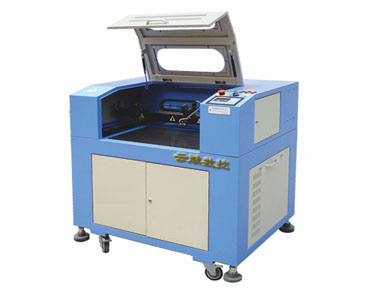

云雕YD-640型激光雕刻机专门用于各种非金属工艺品、礼品、竹木制品雕刻，该机型机械构造更加紧凑合理，电气性能稳定，雕刻速度快、精度高。SF640激光雕刻机可在多种材料，多种形状材料的表面雕刻精美图片、人像、制作各种工艺礼品，还可雕刻各种标识、标牌是一款性能价格比较高的雕刻机。
YD-640 Laser Engraving Machine is specialized in the engraving of all kinds of nonmetallic craftworks, gifts, bamboo and wooden products. The structure is more compact and reasonable, electric performance is steady, the engraving speed is quick, with high precision.
NPS640 Laser Engraving Machine can engrave beautiful pictures, portrait and craftworks on the surface of all kinds and all shapes of nonmetallic materials. It can also engrave diversified marks and brands. This is a machine with good performance and low price.
技术参数
| 型号Model |
NPS-640 |
| 工作幅面 Working area |
600 x 400mm |
| 整机尺寸 Whole machine size |
1120 x 1020 x 1100 |
| 激光类型 Laser-type |
封离式CO2激光管Sealed CO2 laser tuble |
| 激光功率 Laser power |
50W or 60w |
| 冷却方式 Cooling mode |
强制水冷及保护系统Water-cooling and protection system |
| 雕刻速度 Engraving Speed |
0-60,000mm/min |
| 重复定位精度 Resetting position accuracy |
±0.05mm |
| 最小成型文字 Minimum shaping character |
English1×1mm |
| 支持图形格式 Graphic format supported |
BMP,HPGL,PLT,DSTand AI |
| 控制软件 Controlling software |
DSP控制系统 DSP control system |
| 兼容软件 Compatible software |
CorelDraw,AutoCAD,Photoshop |
| 驱动电机 Driving system |
步进 stepper |
| 工作电压 Working voltage |
AC 110-220V±10%,50-60Hz |
| 工作温度 Operating temperature |
0-45℃ |
| 工作湿度 Operating humidity |
5-95% |
