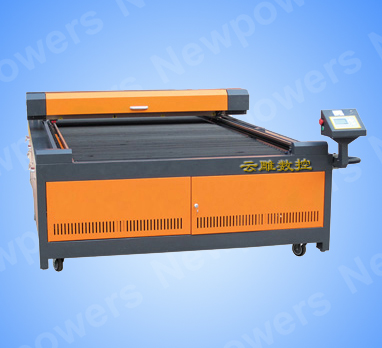

云雕YD-1318/ 1326/1626型激光裁床是根据广告、装饰装潢及相关行业发展需要而专门开发的激光设备。此类机型具有高速雕刻和高速切割双重功效。设备配置进口导轨运行稳定，先进的DSP控制系统三项电机、驱动器，稳定性好，切割精度高，切口平滑，无需二次加工，雕刻效果好，速度快，雕刻深度可自动调节。(可选配伺服电机)
YD-1318/1326/1626 laser flat bed are developed specially for the needs of advertisement , decoration and upholster, and other relative industries. The type of machine has double functions of high-speed engraving and high-speed cutting. The imported guid rail equipped makes the machine run steadily, advanced DSP control system, triphase engine, and drives to make it stable. Precision of cutting is high and the incision is smooth, no need of second working, with good effect of engraving, high speed, and the depth of the engraving can be adjusted automatically. (Optional: Servo Motor)
 ◆技术参数 / Technical-parameters：

型号  Size	YD-1318	YD-1326	YD-1626
工作幅面  Processing area	1300 x 1800mm	1300 x 2500mm	1650 x 2500mm
整机尺寸  Whole machine size	2250 x 1800 x 1000	2950 x 1800 x 1000	3110 x 2100 x 1000
激光类型  Laser-type	封离式CO2激光管Sealed CO2 laser tuble
冷却方式  Cooling mode	强制水冷及保护系统Water-cooling and protection system
激光功率  Laser power	80w or 100w or 130w or 150w
雕刻速度  Engraving Speed	0-60,000mm/min
重复定位精度  Resetting position accuracy	±0.05mm
最小成型文字  Minimum shaping character	English1×1mm
支持图形格式  Graphic format supported	BMP,HPGL,PLT,DSTand AI
控制软件  Controlling software	DSP控制系统  DSP control system
兼容软件  Compatible software	CorelDraw,AutoCAD,Photoshop
驱动电机  Driving system	步进  stepper
工作电压  Working voltage	AC 110-220V±10%,50-60Hz
工作温度  Operating temperature	0-45℃
工作湿度  Operating humidity	5-95%

◆适用材料 / Application：
压克力、双色板、玻璃、纸张、木板、密度板、布料、皮革。
Acrylic, Double-color board, glass, paper, wooden board, MDF, cloth, leather.
◆适用行业 / Application Industry：
广告标识、建筑装潢、工艺玻璃、家具、木质包装、模具玩具、服装等行业，大幅面开料、裁切、雕刻。
Advertisement marking, Architectural decoration, crafts glass, Furniture, wood package, mold, toy, cloth, ect.
样品展示：
