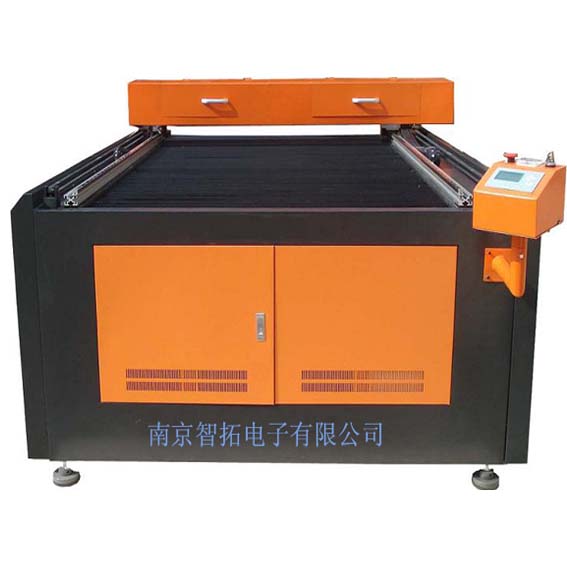

性能特点: 2 机身采用厚壁钢管焊接，经巨型龙门刨处理，确保机床精度高，钢性强 2 整机采用进口高精度滚珠丝杆、导轨，运动平稳，精度更高 2 三轴均采用全防尘结构，确保机器使用寿命长久 2 机电全优设计，精选各种电气配件，将故障率降到最低 2 具有断点记忆、断电续雕加工时间预测等功能，保证在意外情况下加工 适用于：胸牌制作、建筑模型、亚克力切割、电子治具、标识业、电子教学等行业 2可选配在台面上加水槽，适用于雕刻大理石、玻璃等。 *Welded steel tube fuselage with thick, by giant planer processing to ensure high precision machine tools, steel strong; *machine adopts imported high-precision ball screw, rail, smooth motion, higher precision; *whole dust structure axes are used to ensure a long life of the machine; *excellent mechanical.electrical design, featuring a variety of electrical accessories, to minimize the failure rate; *with the breakpoint memory, power outages continued carving of processing time.other functions, to ensure processing in unexpected situations Applies to: badge making, architectural models, acrylic cutting, electronic governance, identify industry, e-learning industry Optional on the table plus the sink for marble, glass, etc. 技术参数： 型号（Type） LB-1212/LB-1218 LB-1224 X/Y轴行程 xy axle distance 1200mm*1200mm/ 1200mm*1800mm 1200mm*2400mm Z轴行程 z axle distance 150mm 150mm 最大速度 Maximum speed 10.0(m/min) 10.0(m/min) 分辨率 Differentiate effciency 0.05mm 0.05mm 处理器 Processing Unit PCI\DSP(32M,128M) PCI\DSP(32M,128M) 传动方式 Transmission belt 丝杆传动 Screw driver 丝杆传动 Screw driver 驱动方式 Driving style 步进 Step 步进 Step 导轨 Guide 圆轨 Circular guide 圆轨 Circular guide 接口界面 Interface screen Win/USB Win/USB 软件运行环境 Software working condition Windows2000/XP/98 Windows2000/XP/98 雕刻指令 Carving orders G-code/HP-GL G-code/HP-GL 功耗(不含主轴) Power consume(No major axle 1000w 1200w 主轴 Major axle 1500w(无刷水冷) 1500w(water-colded) 2200w(无刷水冷) 2200w(water-colded) 主轴转速 Major axle speed 0-24000(转/分) 0-24000(circle/min) 0-24000(转/分) 0-24000(circle/min) 刀具径 Carving diameter 3.175/4mm/6mm 3.175/4mm/6mm/8mm/10mm/12.7mm 电源 Power source 220V50HZ 220V50HZ
